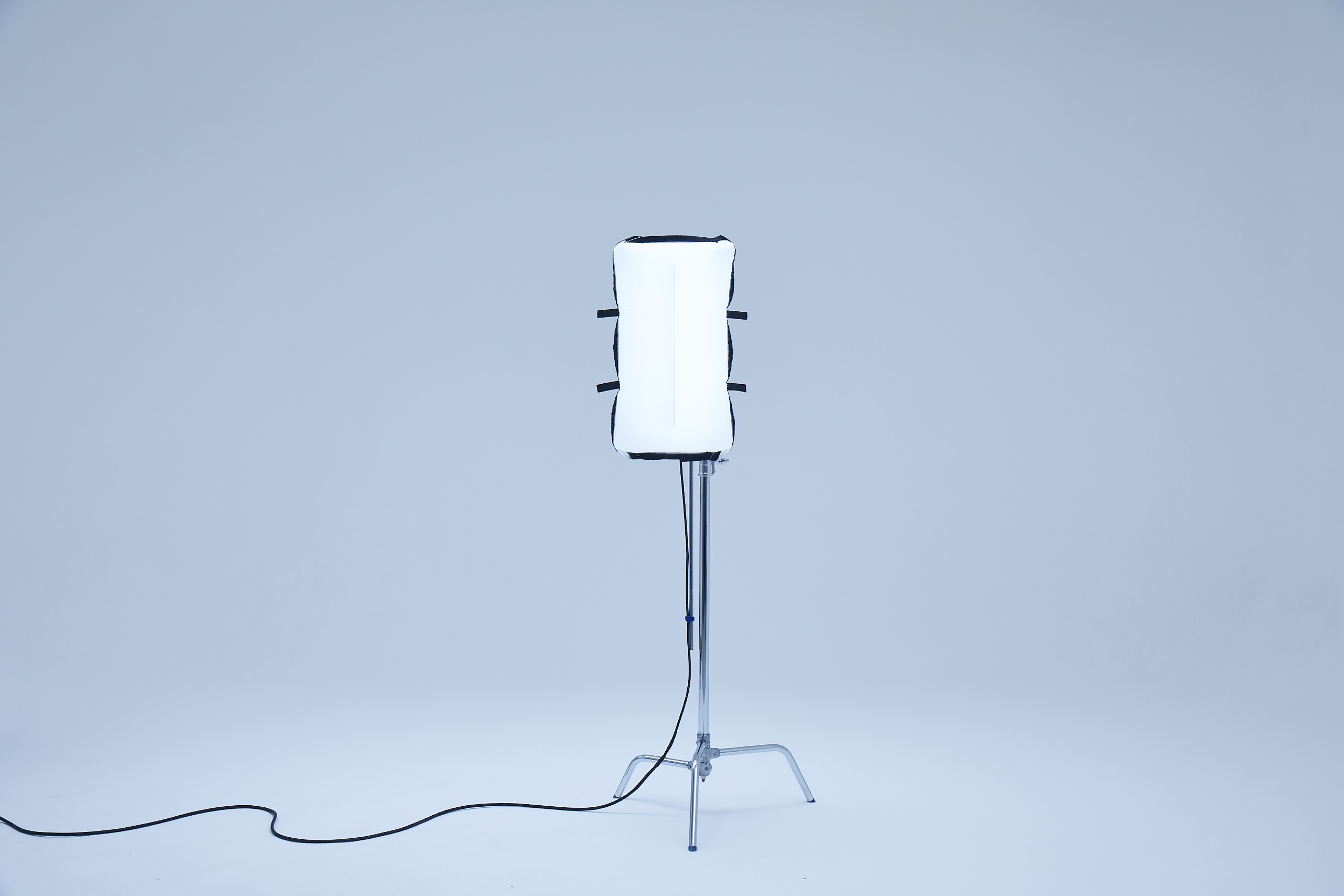

Pipe 2 Pillow

Details:

  • Power per color: 100 W
  • Max power: 200 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 5000
  • IP rating: IP67
  • Fixture weight: 1.5 lbs
  • Complete set weight including travel bag: 13.2 lbs
  • Bag measurements: 23×13×9 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%614322107495700 K 100%729326115574250 K 100%1280649213107

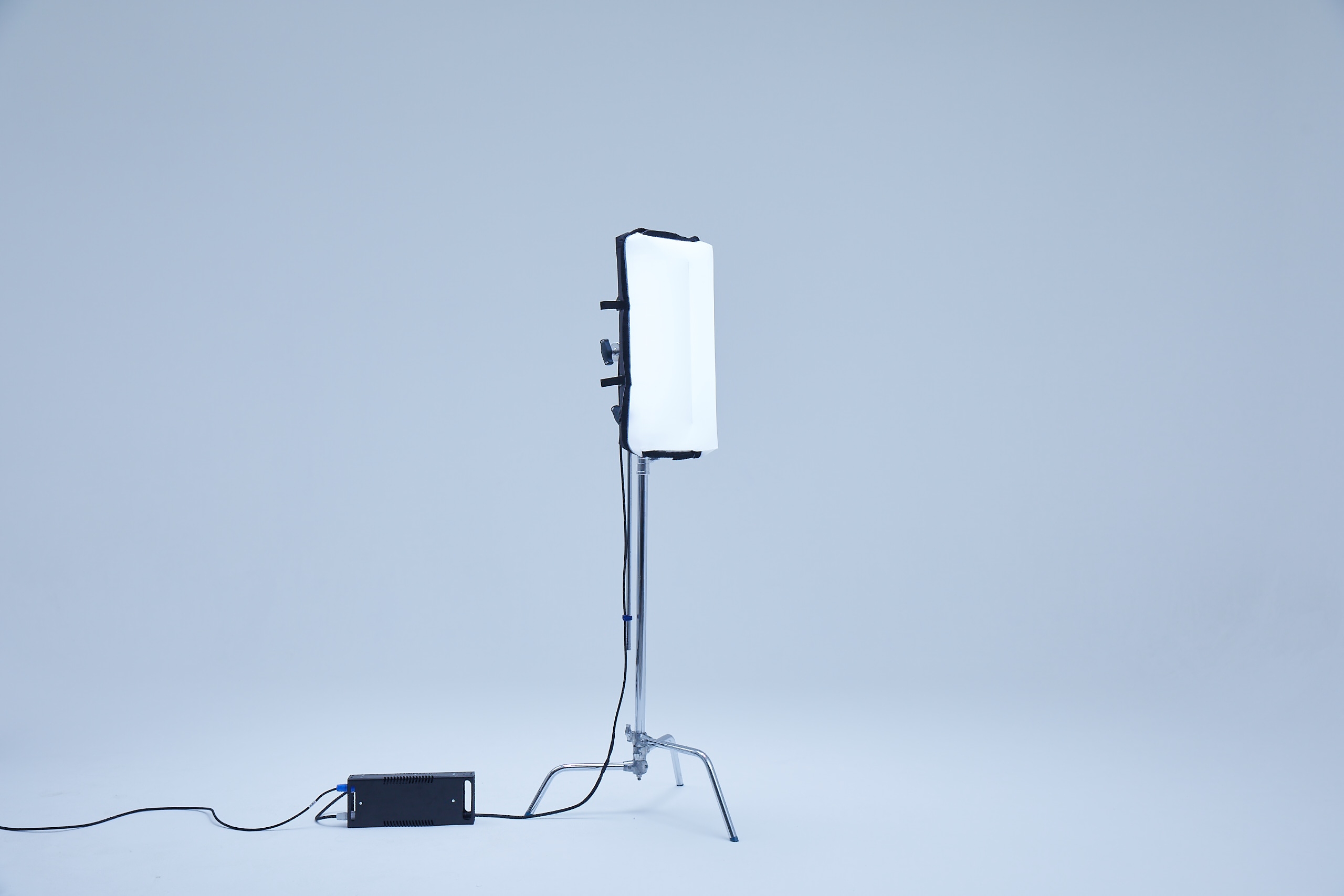

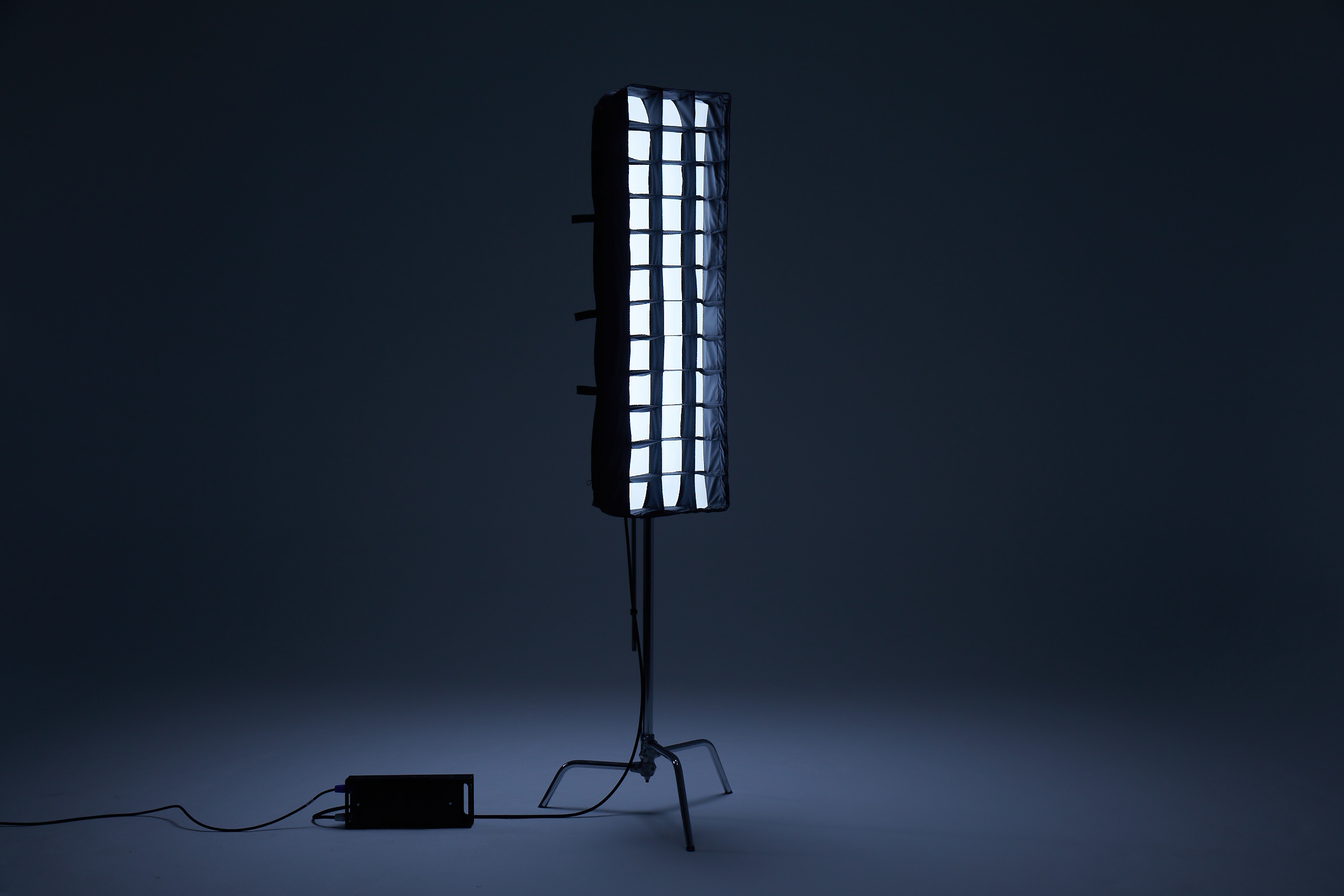

Pipe 4 Shorty

Details:

  • Power per color: 200 W
  • Max power: 400 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 10980
  • IP rating: IP67
  • Fixture weight: 2.2 lbs
  • Complete set weight including travel bag: 20.3 lbs
  • Bag measurements: 23×13×9 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%1020511169815700 K 100%1209543185914250 K 100%2124984345170

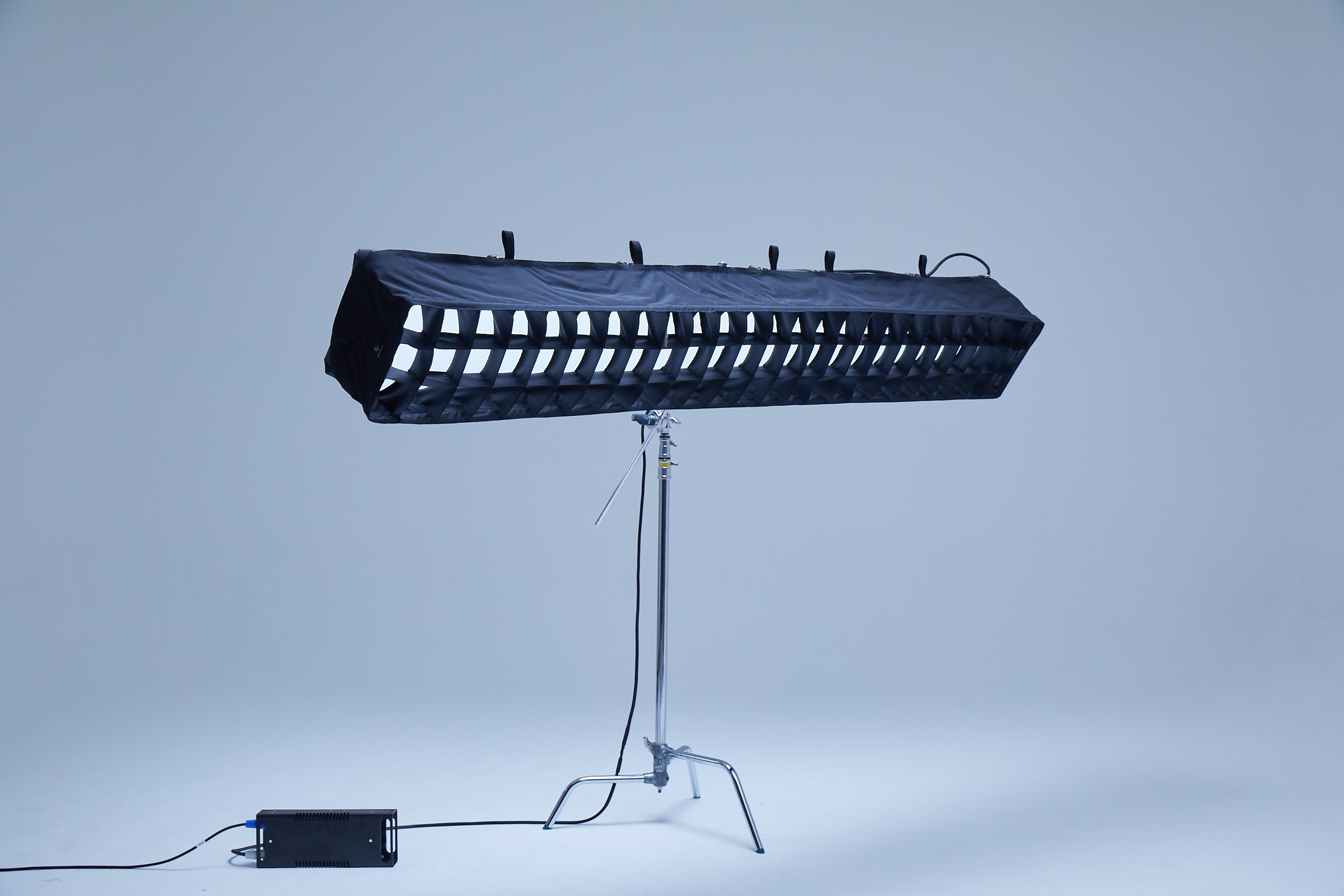

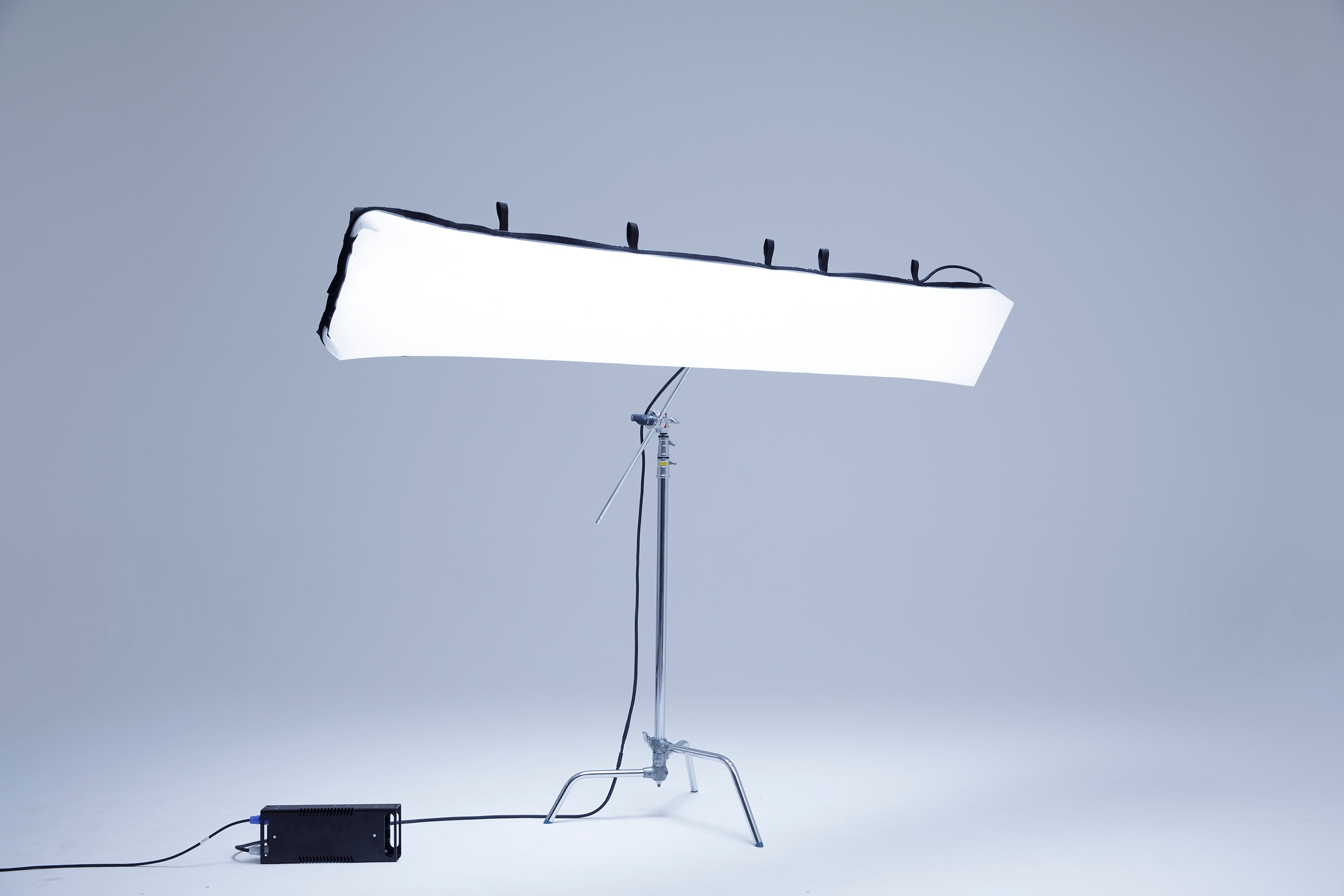

Pipe 8 Sausage

Details:

  • Power per color: 400 W
  • Max power: 800 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 21960
  • IP rating: IP67
  • Fixture weight: 4.2 lbs
  • Complete set weight including travel bag: 24.3 lbs
  • Bag measurements: 23×15×9 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%17007992731345700 K 100%195013703081514250 K 100%34601600577269

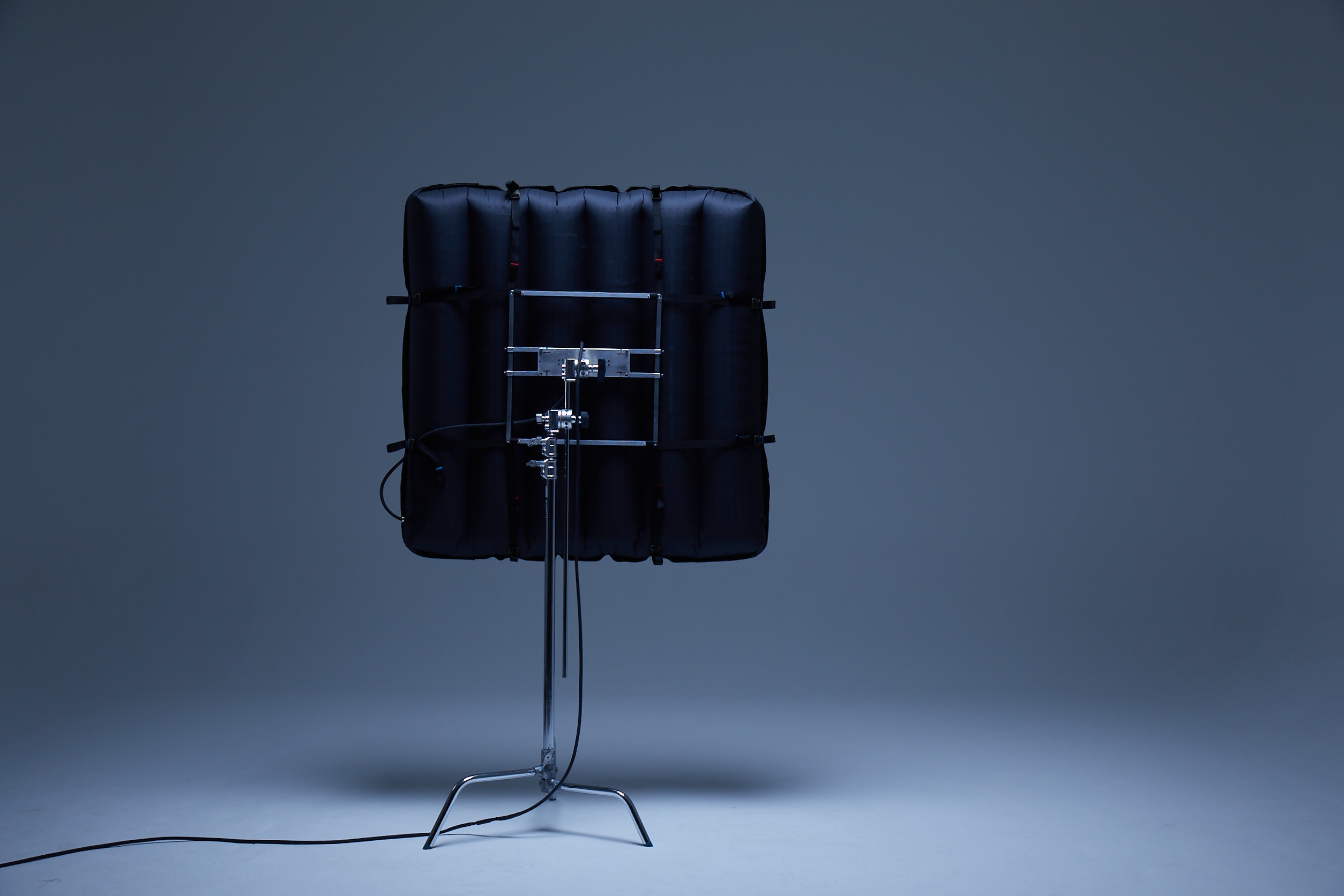

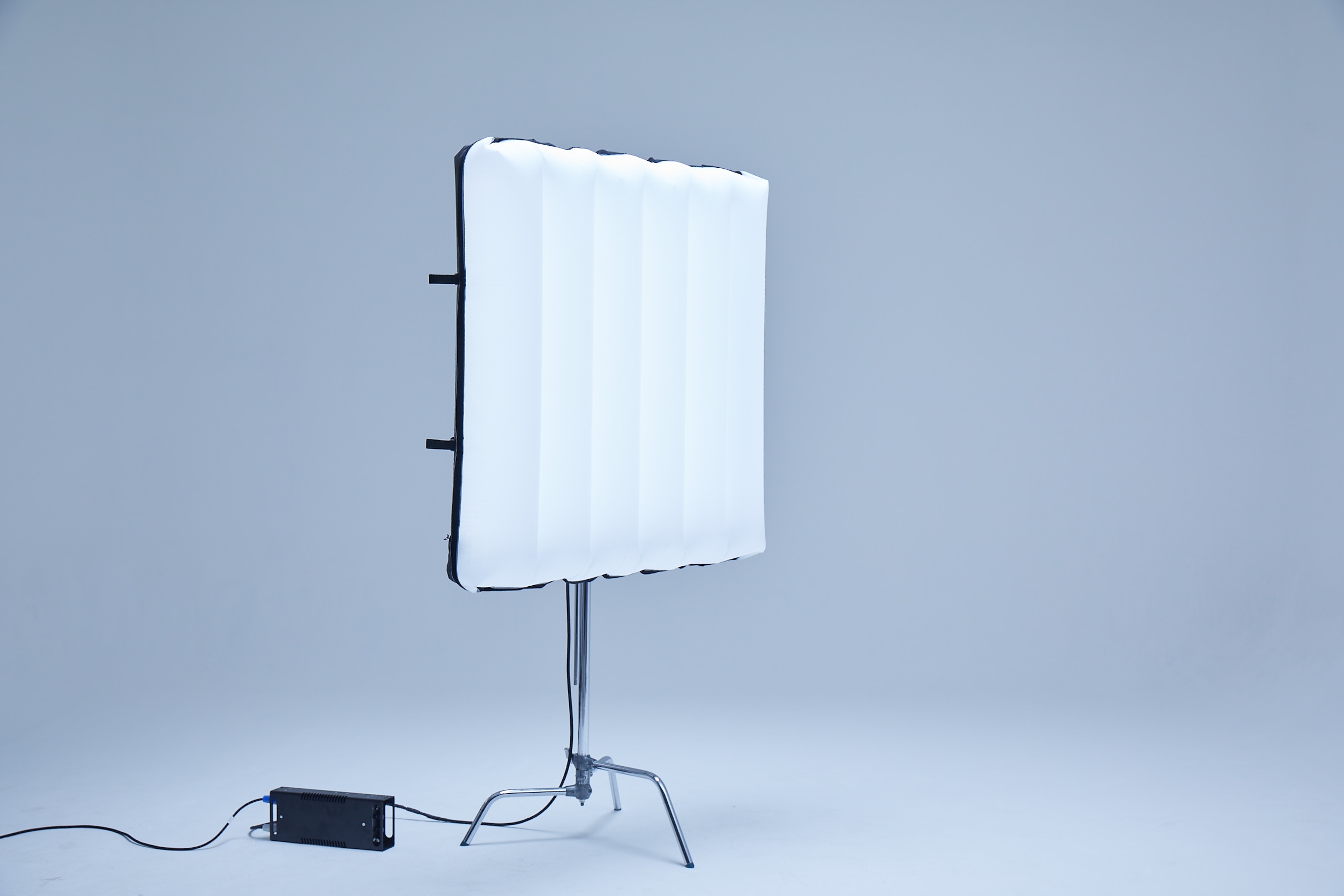

4 × 4

Details:

  • Power per color: 400 W
  • Max power: 800 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 21960
  • IP rating: IP67
  • Fixture weight: 5.3 lbs
  • Complete set weight including travel bag: 29.8 lbs
  • Bag measurements: 41×11×10 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%17007992731345700 K 100%195013703081514250 K 100%34601600577269

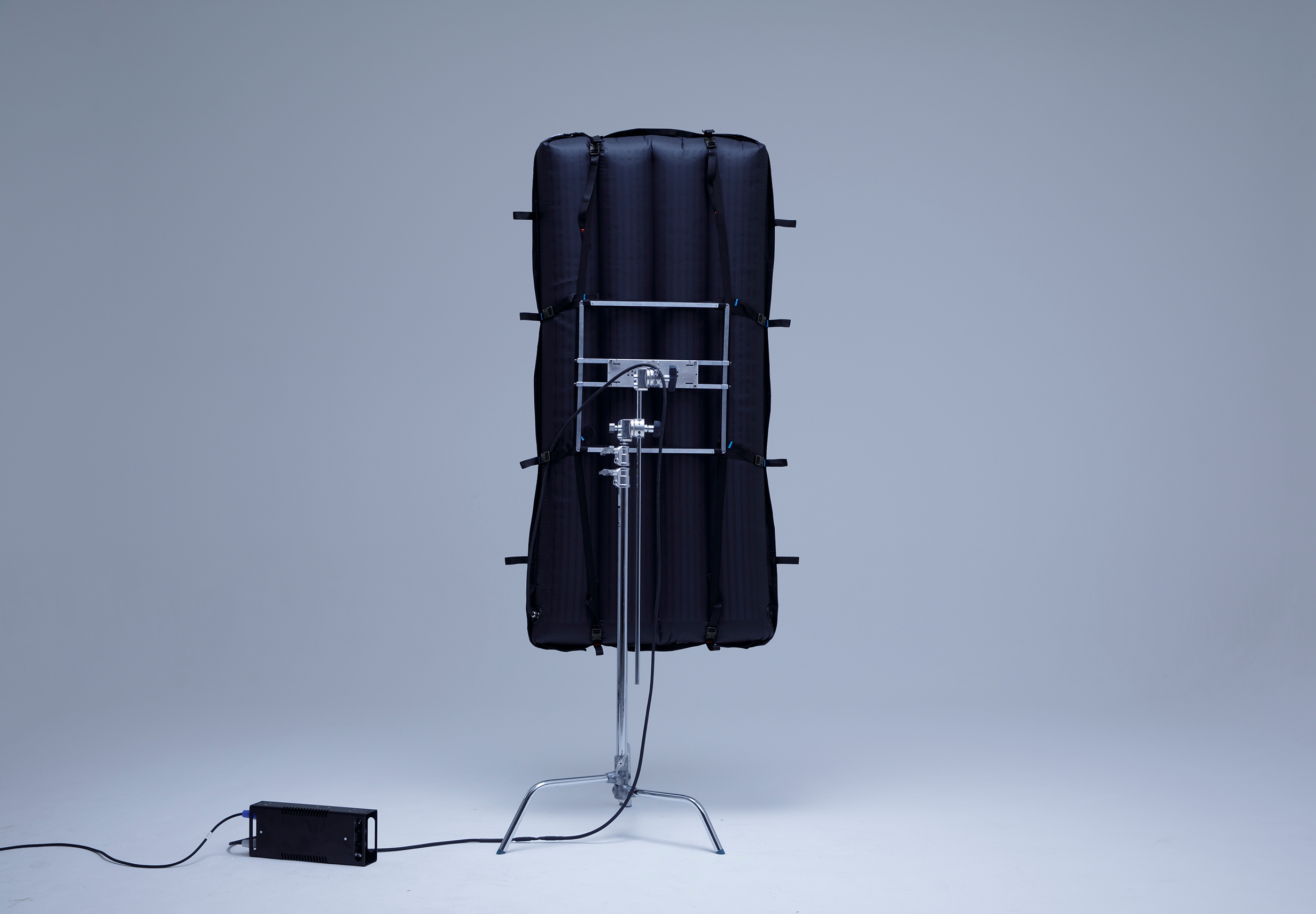

The Queen 6 × 3

Details:

  • Power per color: 400 W
  • Max power: 800 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 21960
  • IP rating: IP67
  • Fixture weight: 5.5 lbs
  • Complete set weight including travel bag: 30.4 lbs
  • Bag measurements: 41×13×10 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%17007992731345700 K 100%195013703081514250 K 100%34601600577269

The King 8 × 4

Details:

  • Power per color: 800 W
  • Max power: 1600 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 43920
  • IP rating: IP67
  • Fixture weight: 8.4 lbs
  • Complete set weight including travel bag: 36.6 lbs
  • Bag measurements: 41×11×10 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%289013584642285700 K 100%331515355242574250 K 100%58822720947457

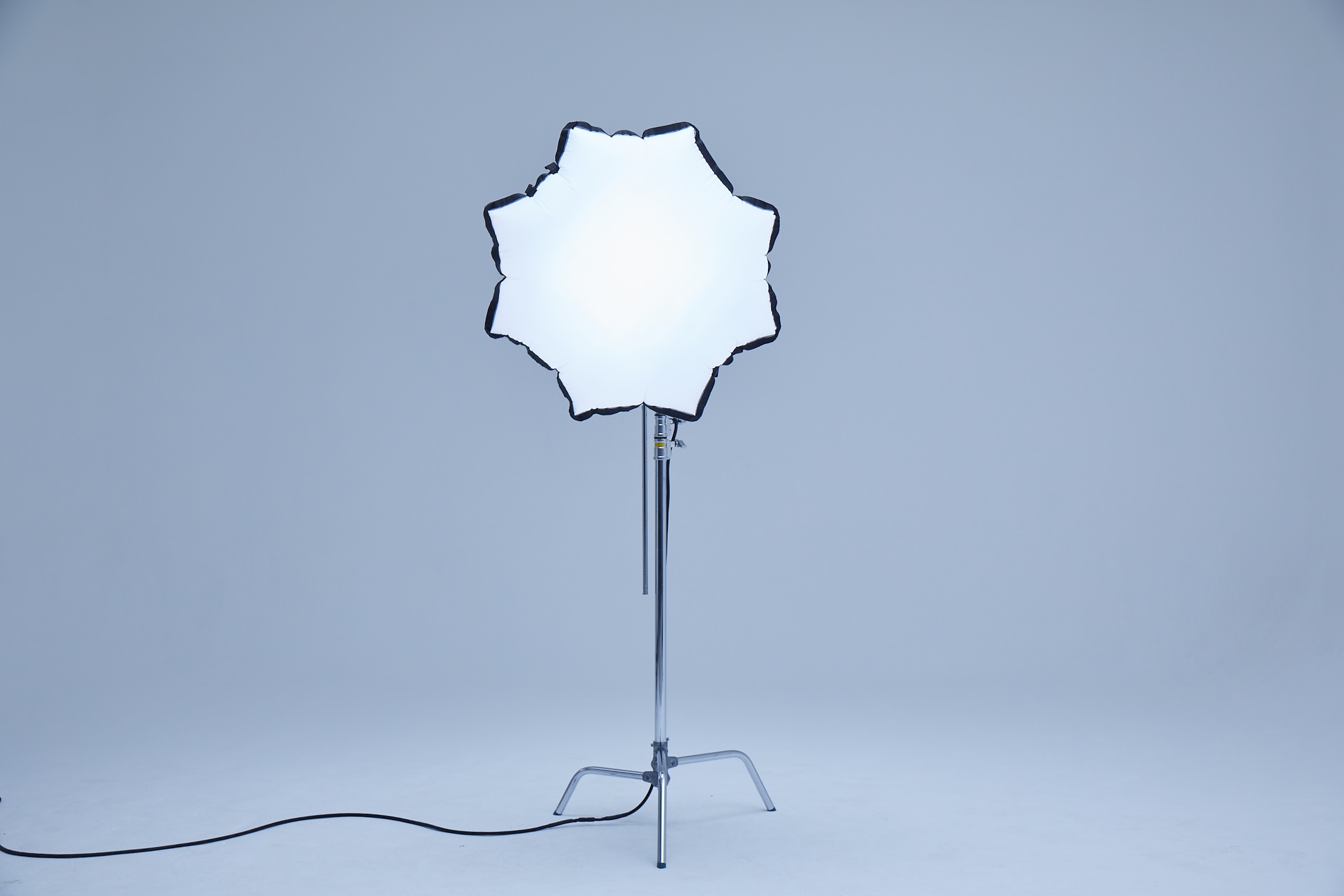

Pipe ball

Details:

  • Power per color: 150 W
  • Max power: 300 W
  • Input voltage: 24 V
  • Dimming range: 0% - 100%
  • Single color range:
    (2600 K - 5700 K)
  • Mid range: 0% - 200%
  • Lumens 43920
  • IP rating: IP67
  • Fixture weight: 3.3 lbs
  • Complete set weight including travel bag: 13.2 lbs
  • Bag measurements: 23×13×9 in
inflatedLux @
3'3"Lux @
6'6"Lux @
13'1"Lux @
19'8"2600 K 100%816409135655700 K 100%967434148734250 K 100%1699787276136
